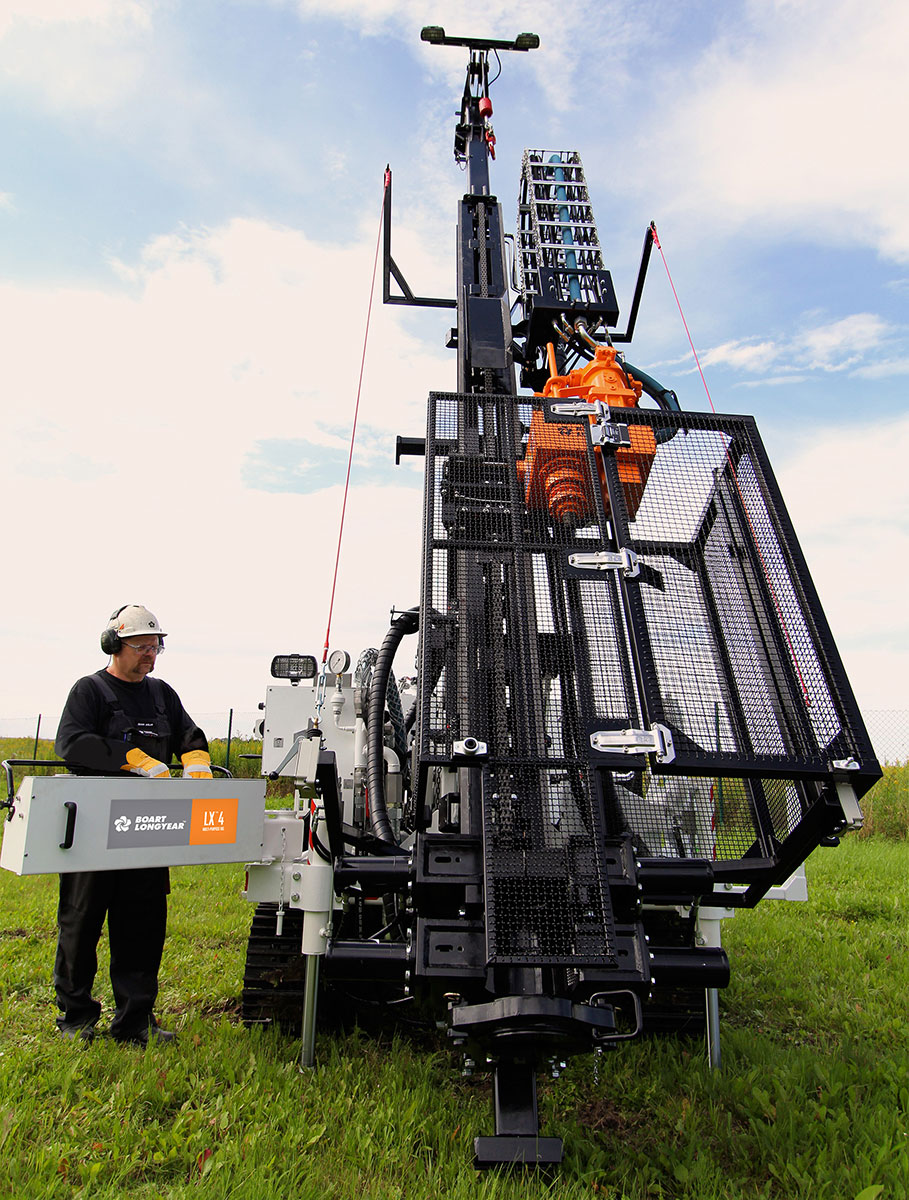

Power and Versatility

The LX4 features a powerful Deutz D914 L04 air cooled diesel engine that produces 53 kW (71 hp) of power at 2,300rpm. The LX4 also has a maximum breaking torque of 20.5 kNm (15,120 lb-ft) and 55 kN (12,364 lbf) of pull back force.

Design

The LX4 is capable of both wireline and conventional coring as well as down the hole, rotary and auger drilling methods. This multipurpose rig was specifically designed to be extremely versatile with its powerful steel crawlers, mast dump/raising ability and 220 mm double clamps.

Safety

The LX4 comes loaded with standard safety features. The safety cage ensures drillers remain a safe distance from the drill string, while low speed and low torque rotation ensures safe rod management. The steel crawlers coupled with the LX4's upright stability make this machine extremely stable on uneven formations.

Features

1. POWERFUL STEEL CRAWLERS
Ensure mobility on difficult terrain.

2. 500 MM MAST DUMP
For improved positioning on rough terrain. Hydraulic mast raising for increased mobility.

3. STANDARD HYDRAULIC SLIDE SHIFT
For easy rod-pulling and clear access to center line.

4. 220 MM DOUBLE CLAMP
For making and breaking rod joints quickly and safely.

5. STANDARD SAFETY FEATURES
Safety cage and low speed, low torque rotation for safe rod management.

Drilling Depth GuidelinesMetricU.S.
Core Drilling
NQ / NQ2" / NV / NV2"210 m690 ft
HQ / HV150 m490 ft
PQ / PV100 m330 ft
Rotary Drilling (Tricone)
Hole diameter 210 mm (8.5 in)120 m390 ft
Auger Drilling
Hole Diameter 150 mm (5.9 in)15-20 m49-65 ft
DTH Drilling Package
Maximum size DTH hammer98 mm (3 7/8 in) @ max 17,2 m3 / min @ max 24 bar
Maximum depth capacity200 m656 ft
Recommended hole size115 mm4.5 in
Maximum hole size127 mm5 in
Recommended rod size76.1 mm3 in

DOWNLOAD FULL SPREADSHEET (XLS)
