POSITIONING SYSTEM

A key feature of the StopeMate is the ability to drill a complete drop raise pattern from a single position, ensuring parallel holes which is a critical consideration in longhole drilling, where straight holes mean less dilution and more productivity.

S36 IR ROCK DRILL

The driving force behind the StopeMate is the S36 Independent Rotation Pneumatic Rock Drill, a powerful 114 mm (4.49 in) diameter bore drifter-type drill designed for deep hole drilling. In favorable ground conditions, the S36 IR can drill 37 m (122 ft).

FULLY PNEUMATIC OPERATION

Ideal for captive areas and narrow vein mining.

MODULAR DESIGN WITH EFFICIENT DISMANTLING AND REASSEMBLY

Can be transported rapidly even into captive areas, decreasing move time and increasing productivity.

CONSISTENT

High performance drilling regardless of varying operator skill levels or conditions. Decreased maintenance costs with routine maintenance being done in the stope and increased time between scheduled preventive maintenance.

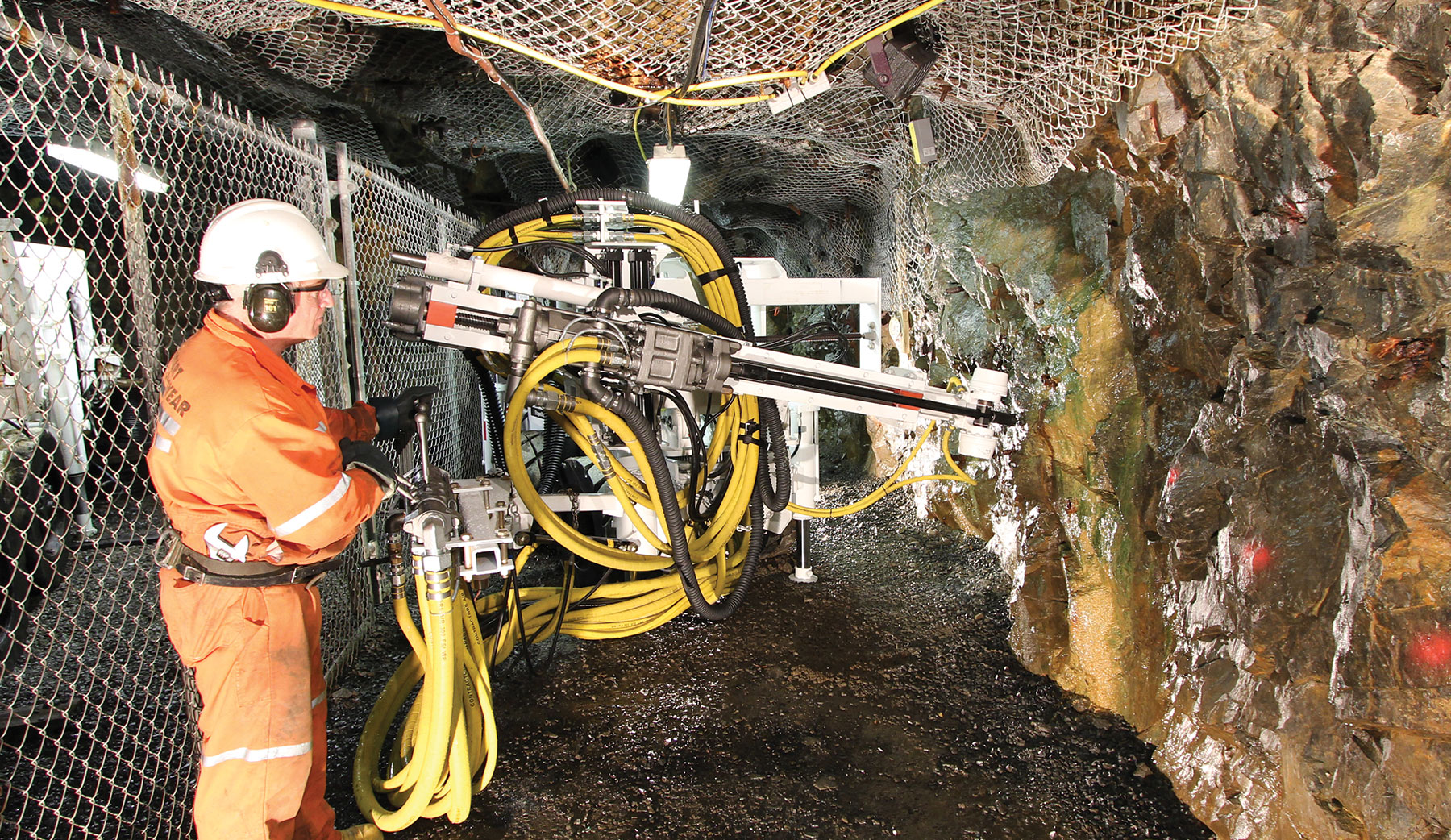

Boart Longyear - StopeMate™

Features

1. COMPACT AND MOBILE
Able to tram through a 1.27 m x 1.9 m opening. Back height drilling can be as low as 2.44 m (8 ft). It can fit in most cages without disassembly. Fully pneumatic operation is ideal for captive areas.

2. ACCURACY AND FLEXIBILITY
Optional Helac Positioning System delivers full 360° radius drilling with extreme accuracy. The Travers pivots more than 180° in tight spaces without ever moving the carrier. Capable of parallel drilling, ring drilling, service holes, drop raises, and cable bolting.

3. POWERFUL AND EFFICIENT
The Stopemate uses the S36 a powerful 114 mm (4.49 in) diameter bore drifter-type drill designed for deep hole drilling. The S36 can drill up to 37 m (122 ft) in ideal ground conditions.

4. MODULAR
Efficient dismantling and re-assembly enables faster move times and increased productivity.

Drilling Depth Guidelines
Rock Drill

Fully independent rotation motor
22 kW (30pb.) Radial Piston air motor
 Carrier  4 wheel skid steer carrier
Up to 30% gradability
 Drill Positioner  Traverse side to side travel of 1.2 m (48 in.)
Traverse movement via hydraulic motor driven feed screw
HD rotation slew bearing driven by a hydraulic cylindar for 90° traverse rotation
Dual hydraulic rack and pinion rotary actuator with manual locking system - 360° rotation
 Options 0.76 m, 0.91 m, and 1.52 m Traverse Travel (center line to center line)
Laser hold alignment system
Dimensions Overall weight is 3,742 kg (8,250 lbs)
Raise transport - undercarriage (largest module only) Length 2,794 mm, Width 1,220 mm, Height 813 mm @ 1,795 kgs
Drilling Depth Guidelines

Rock Drill

Fully independent rotation motor

22 kW (30pb.) Radial Piston air motor

Carrier

4 wheel skid steer carrier

Up to 30% gradability

 Drill Positioner

Traverse side to side travel of 1.2 m (48 in.)

Traverse movement via hydraulic motor driven feed screw

HD rotation slew bearing driven by a hydraulic cylindar for 90° traverse rotation

Dual hydraulic rack and pinion rotary actuator with manual locking system - 360° rotation

Options

0.76 m, 0.91 m, and 1.52 m Traverse Travel (center line to center line)

Laser hold alignment system

Dimensions

Overall weight is 13,742 kg (8,250 lbs)

Raise transport - undercarriage (largest module only) Length 2,794 mm, Width 1,220 mm, Height 813 mm @ 1,795 kgs
