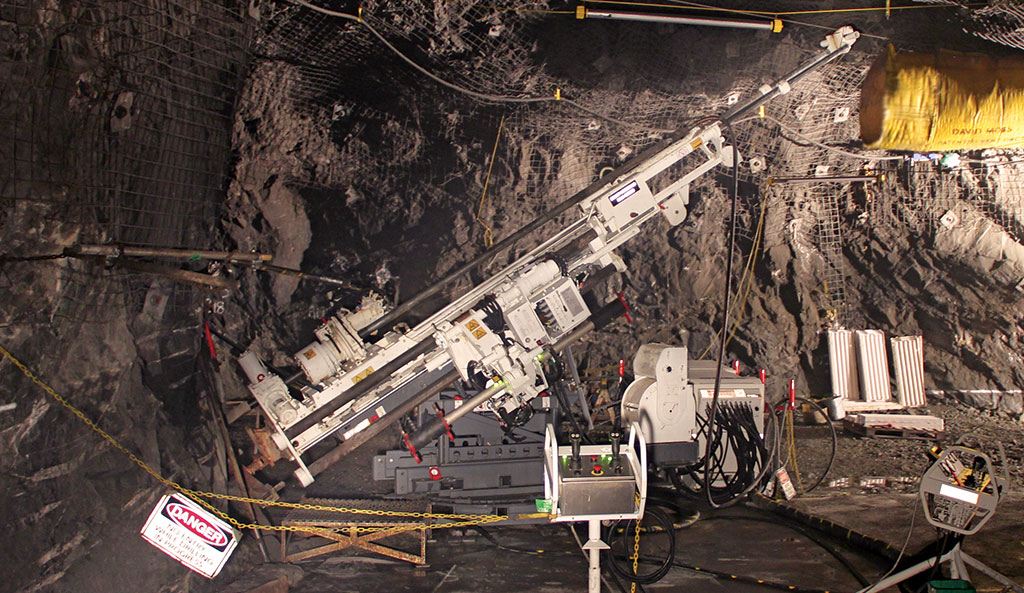

PRODUCTIVE

The 110kW power pack delivers up to 33% more torque to the drill head than a similarly equipped LM™90, delivering increased productivity.

MODULAR DESIGN

The LM110 was designed as a modular drill rig with a number of options for site-specific customization. This drill is easy to use and upgrade to meet the needs of future drilling projects.

SAFE

An optional patented rod handler can be added to the LM110, which greatly increases driller safety. The rod handler makes loading rods easier and ensures drillers remain away from moving parts during rod tripping.

RELIABLE

The LM110 features a load sensing hydraulic system, proportional controls, a fail-safe rod clamp, built in troubleshooting and a spooling device. These features make the LM110 a highly reliable drill when operating in harsh conditions.

Features

1. REVERSIBLE FEED CYLINDER
The feed cylinder is reversible which increases up-hole drilling capacity.

2. SEMI-AUTOMATED ROD HANDLING (OPTIONAL)
Semi-automated rod handler (optional) makes handling of rods safer and easier.

3. HIGH TORQUE BREAKOUT
Automated high torque breakout device breaks most rod joints automatically.

4. FAIL SAFE ROD CLAMP
Hydraulic open and spring close rod clamp results in fail safe operation.

5. LOAD SENSING HYDRAULICS
Load sensing hydraulics maximize efficiency and reduce heat.

6. PROPORTIONAL CONTROLS
Proportional controls and lock levers provide optimum control of rpm and feed.

7. DIRECT COUPLED FEED FRAME
Direct coupled feed frame results in lower maintenance and smoother feed transmission.

8. ELECTRONIC CONTROLS UPGRADABLE (Optional DCi)
Upgrade the controls system with the DCi for improved safety and productivity. The DCi offers unattended drilling and semi-automated functions and operates both the rod handler and drill from a single control panel.

SpecificationMetricU.S.
Vertical Depth Capacity (1300FF)1,500 m (NRQ)4,922 ft (NRQ)
Drill Rod SizeAQ to HQ
Feed Force63.6 kN14,291 lb
Pull Force127.7 kN28,708 lb
Feed Length1.83 m6 ft
Head Torque430 N-m @ 1,200 RPM
1,088 N-m @ 500 RPM
317 ft-lb @ 1,200 RPM
802 ft-lb @ 500 RPM
Electric Motor110 kW147 hp

DOWNLOAD FULL SPREADSHEET (XLS)
